products / surface and storm water drainage

FEATURES

Manufactured by using M-30 grade of concrete
Manufactured by vibro compaction process
Manufactured by using joint less FRP moulds, so at to achieve shuttering finish on five faces
Note: We can also manufacture drain covers of custom sizes
Quick Links: Learn why our drain covers are better
Quick Links: Learn how to correctly specify trench and drain covers

Product Picture	Nominal Size	Length	Width	Thickness	Hole Configuration	Reinforcement Detail
	430x430x100	430	430	100		8 mm dia tor steel at 100 mm c/c
	500x400x50	500	400	50	8 or 12 Rectangular Holes	8 mm dia tor steel at 100 mm c/c
	500x400x60	500	400	60	4 Rectangular Holes	8 mm dia tor steel at 100 mm c/c
	500x400x70	500	400	70	4 or 8 Rectangular Holes	8 mm dia tor steel at 100 mm c/c
	500x400x70	500	400	70	Without Holes	8 mm dia tor steel at 100 mm c/c
	500x430x70	500	430	70	4 Rectangular Holes	8 mm dia tor steel at 100 mm c/c
	550x300x60	550	300	60	8 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x300x60	600	300	60	10 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x300x70	600	300	70	12 Rectangular Holes	8 mm dia tor steel at 100 mm c/c
	600x300x100	600	300	100	10 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x400x60	600	400	60	15 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x400x65	600	400	65	15 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x400x70	600	400	70	15 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x450x60	600	450	60	4 Circular Holes	8 mm dia tor steel at 100 mm c/c
	600x450x70	600	450	70	10 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x450x88	600	450	88	Without Holes	Two layers of 8 mm dia tor steel at 100 mm c/c
	600x450x100	600	450	100	4 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x550x60	600	550	60	16 Round Holes	8 mm dia tor steel at 100 mm c/c
	600x550x70	600	550	70	Without Holes	8 mm dia tor steel at 100 mm c/c
	600x600x70	600	600	70	Without Holes	8 mm dia tor steel at 100 mm c/c
	600x600x100	600	600	100	Without Holes	8 mm dia tor steel at 100 mm c/c
	650x600x60	650	600	60	Without Holes	8 mm dia tor steel at 100 mm c/c
	750x600x70	750	600	70	6 Circular Holes	8 mm dia tor steel at 100 mm c/c
	800x400x70	800	400	70	2 Round Holes	8 mm dia tor steel at 100 mm c/c
	800x500x100	800	500	100	15 Round Holes	Two layers of 8 mm dia tor steel at 100 mm c/c
	900x400x70	900	400	70	8 Round Holes	8 mm dia tor steel at 100 mm c/c
	900x450x50	900	450	50	Without Holes	8 mm dia tor steel at 100 mm c/c
	900x450x90	900	450	90	8 Circular Holes	One or Two layers of 8 mm dia tor steel at 100 mm c/c
	900x500x70	900	500	70	8 Round Holes	8 mm dia tor steel at 100 mm c/c
	1000x300x50	1000	300	50	Without Holes	8 mm dia tor steel at 100 mm c/c
	1100x550x75	1100	550	75	20 Round Holes	8 mm dia tor steel at 100 mm c/c
	1150x400x100	1150	400	100	10 Circular Holes	Two layers of 8 mm dia tor steel (6 bars along the length and 14 bars along the width)

HOW TO SPECIFY TRENCH/DRAIN COVERS

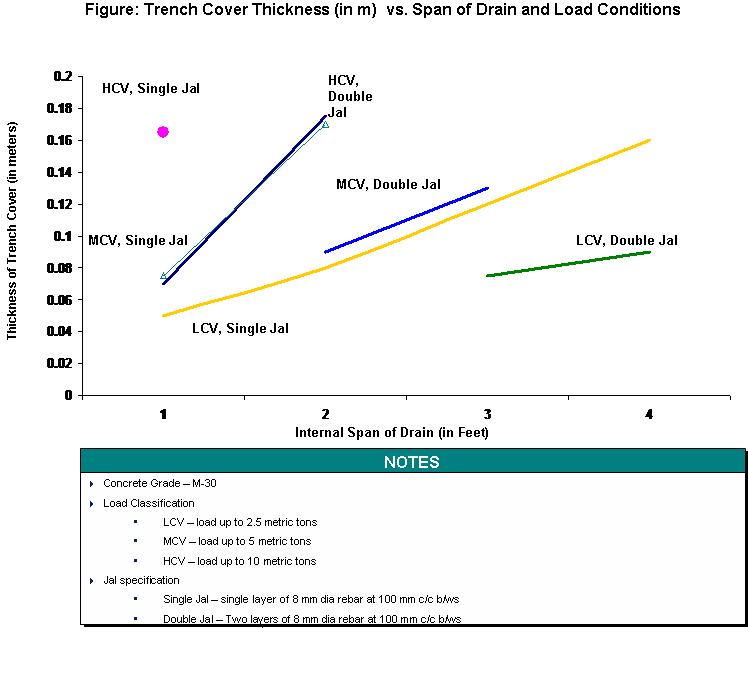

Often trench and drain covers fail because they are not specified properly for the application. Doing the job right, requires knowing two important factors specific to the application. First, measure the internal span of the drain. And second, estimate the maximum load the cover is going to experience during its operating life. Next, use the chart below to determine suitable thickness of the cover and reinforcement required. Note that since the chart below is prepared for solid covers increase the specifications if there are holes in the cover for drainage. More is the number of holes, greater would be the change to the specification. Lastly, ensure that the cover has a proper seating. The length of the seating can vary from 2 to 4 inches based on the application.

Konkrete Precast Concrete Products are manufactured using the latest vibro-compaction techniques, accurately designed moulds, appropriate reinforcement with circular plastic spacers and a concrete grade of M30 and above. In our constant endeavour to improve the products, the specifications may change without notice. All dimensions are in mm
