Product
Categories |
Product
Picture |
Dimensional
Drawing |
Concrete
Cover
(in mm) |
Steel
Bar Size(in mm) |
Application(s) |
|

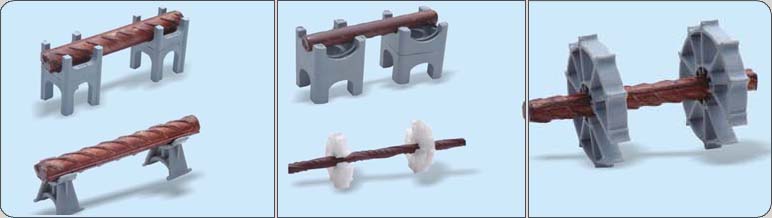

Plastic Spacers
|
| H Shape
|
 |
|
15 mm to 75 mm |
Up to 32 |
Bottom
Support in precast and cast-on-site
construction ,e.g.
foundations, slab, etc. |
| |
| X Shape |
 |
|
15 mm to 25 mm |
Up to 12 |
Bottom
Support in precast and cast-on-site
construction ,e.g.
foundations, slab, etc. |
| |
|
Clip Shape |
 |
|
25 mm to 50 mm |
Up to 12 |
Bottom
Support in precast and cast-on-site
construction ,e.g.
foundations, slab, etc. |
| |
|
Slab |
 |
|
15mm to 25mm |
Up to 16 |
Bottom
Support in precast and cast-on-site
construction ,e.g.
foundations, slab, etc. |
| |
| Circular |
 |
|
20 mm to 60 mm |
Up to 16 |
Used
in walls and columns |
| |
| End Cap |
 |
|
20 |
Up to 12 |
Used
at reinforcement ends |
| |
| Cone |
 | |
22/35/40 |
Up to 20 |
Used
in wall shuttering |
| |
|
Concrete Spacers
|
|
Clip Type |
 |
|
25/30 |
Up to 10 |
Bottom Support
in Precast & cast on site construction. |
| |
| Square with nylon
tie |
 |
|
40/50 |
Up to 32 |
Bottom Support in Precast & cast on site construction |
| |
| Long body with nylon
tie |
 |
|
50/70 |
Up to 32 |
|
| |
| Circular |
 |
|
20/40/65/75 |
Up to 30 |
Used in wall shuttering
& piles cover |
